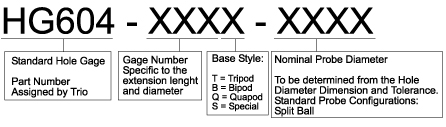

Testing & Measuring l Trulok Gages l Hole Diameter Gages l Depth HG604-XXXX-XXXX

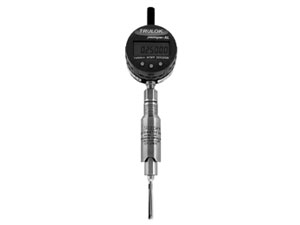

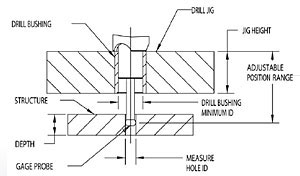

A high precision digital gage for quick and accurate measurement of the hole diameter. This gauge has an adjustable height outer sleeve that allows readings at the same depths through drilling templates. The gage body is constructed to fit closely through a given special configuration drilling bushing (template). The total depth positioning range of the probe is 1.25 inches. The gage body has machined positioning lines spaced equally at .0625 inch intervals throughout the adjusting range. The measuring range of the gage's ID probe is Ø .020 inch around the nominal diameter. This gage is designed specifically to fit your application.

Features:
• Measuring accuracy .0001 inch (.0025mm)
• Direct contact inside the hole at any depth
• Direct reading of the bore diameter
• Different base configurations available for curved surfaces
• Accurate, repeatable and reproducible
• SPC ready via data port cable
• Ease of use with minimal training
• Eliminate costly rework
• Gage and set block calibrated to NIST traceable standards
• Unique serial numbers on gages, set blocks and indicators
• The components of our gages are made of heat treated wear resistant tool steels and micro finished to ensure accurate and trouble free operation
• LCD display with rotating bezel
• Inch/mm mode toggle capable
• SPC data output ready via data port
• Upper and lower tolerance capable
• User selectable resolution (Mahr-Federal)
• Auto power off after 15 minutes of inactivity (Mahr-Federal)
• Lockout of setup preset (access key - Mahr-Federal, computer -Mitutoyo)
• Choice of indicators: Mahr-Federal, Mitutoyo or Sylvac (please advise of your preference) or Sylvac (please advise of your preference
