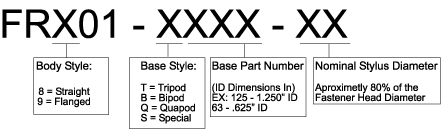

Testing & Measuring l Trulok Gages l Flushness Gages l FR901-XXXX-XXX

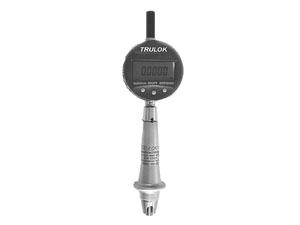

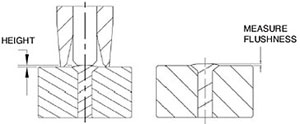

The FR901 is a custom size gage that provides a quick and accurate flushness measurement. The sized flat end stylus is perfect for measuring the highest point of the fastener head for flushness after installation. The contact area of the flat stylus is generally sized to cover approximately 80% of the fastener's head. The base is fixed and it has a predetermined ID and OD to clear the installed fastener head and the surrounding structure. This gage could be used in combination with any countersink depth or diameter gauges in order to achieve greater control of the fastener installation process.

Features:
• Measuring accuracy .0001 inch (.0025mm)
• Direct contact with the stylus allows pin point selection of the protrusion measurement
• Direct reading, no calculations or charts necessary
• Accurate, repeatable and reproducible
• SPC ready via data port cable
• Ease of use with minimal training
• Eliminate costly rework
• Gage and set block calibrated to NIST traceable standards
• Unique serial numbers on gages, set blocks and indicators
• The components of our gages are made of heat treated wear resistant tool steels and micro finished to ensure accurate and trouble free operation
• LCD display with rotating bezel
• Inch/ mm mode toggle capable
• SPC data output ready via data port
• Upper and lower tolerance capable
• User selectable resolution (Mahr-Federal)
• Auto power off after 15 minutes of inactivity (Mahr-Federal)
• Lockout of setup preset (access key- Mahr-Federal, computer -Mitutoyo)
• Choice of indicators: Mahr-Federal, Mitutoyo or Sylvac (please advise of your preference)
