Testing & Measuring l Trulok Gages l Flushness Gages l Mechanical F-1X

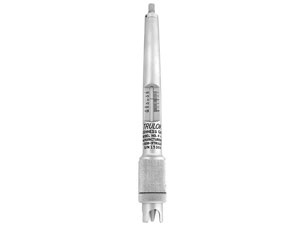

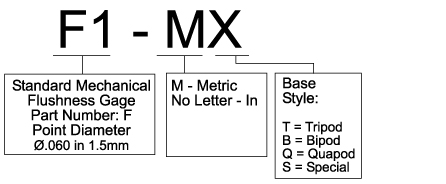

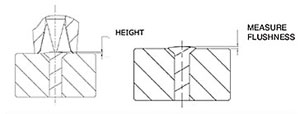

The F1 TRULOK - mechanical gage provides a quick and accurate flushness measurement. The Ø .060 inch (1.5 mm) flat point stylus is perfect for measuring selected areas of the fastener head for flushness. The base is fixed and has an internal ID of Ø .63 inch (16 mm). A metric gage F1M is available with a scale between -.05 to +.05 mm. Used in combination with a countersink depth or a diameter gauge it provides the user with greater control of the fastener installation process. This versatile gage can check flushness for installed fasteners, welds and grooves.

Features:
• Calibrated inch scale from -.010 to +.025 with .001 inch divisions
• Calibrated metric scale from -.50 to +.50 with .02 mm divisions available
• Direct contact with the stylus allows pin point selection of the protrusion measurement
• Direct reading, measurement remains displayed until the gauge is re-zeroed
• Accurate, repeatable and reproducible
• Ease of use with minimal training
• Gage and set block calibrated to NIST traceable standards
• Unique serial numbers on gages, set blocks and indicators
• F1 is the most rugged, dependable flushness gauge
• Heat-treated tool steels and micro finished parts insure accurate and trouble free operation for years to come
