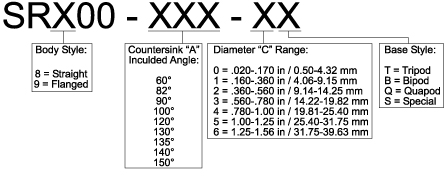

Testing & Measuring l Trulok Gages l Countersink Diameter Gages l Diameter SR900-XXX-XX

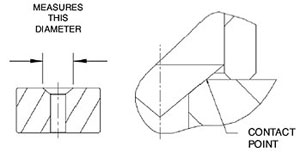

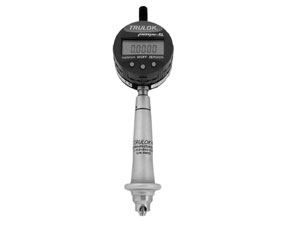

A high precision digital gage for quick and accurate measurement of the major countersink diameter. The SR900 gage has a conical type probe that contacts the major countersink diameter. This gage has the capability to cover a large range of countersink diameters.

Features:
• LCD display with rotating bezel
• Inch mm mode toggle capable
• SPC data output ready via data port
• Upper and lower tolerance capable
• User selectable resolution (Mahr-Federal)
• Auto power off after 15 minutes of inactivity (Mahr-Federal)
• Lockout of setup preset (access key - Mahr-Federal, computer -Mitutoyo)
• Choice of indicators: Mahr-Federal or Mitutoyo (please advise of your preference)
