Riveting Tools l Avro Wolfpack 2X-3X-4X

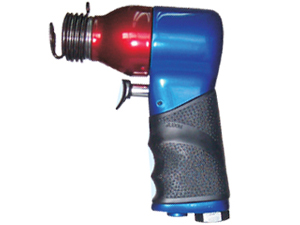

The Avro “Wolfpack” series of riveting hammers feature a revolutionary piston design that delivers far more power and assists in absorbing vibration, allowing the operator to choose a smaller and lighter tool for the same application.
The “Ergonomic” housing is designed for maximum operator comfort and the “Ergo Grip” which acts as a thermal protector and helps isolate vibration, are both standards in these tools. A spool valve system delivers slow, heavy blows necessary to drive rivets. An extremely sensitive teasing throttle permits precise control.


Model
Capacity
Blows/minute
Bore & Stroke
Length
Weight
Alu/steel
in / mm
in / mm
lb / kg
WP100 Rivet Hammer 1X .401 Special Short Shank
10015
5/32" / 3/32"
2850
9/16" x 1-7/8" / 14.3x 47.6
4" / 102
2-1/8 / .96
(3.97mm / 2.39mm)


Standard Equipment:

Special quick change retainer #92016
General:
Air Inlet 1/4” NPT Standard
1/4” BSP (Europe) ADD-E to part number; eg: 10015E
Use 5/16” (8mm) I.D Hose
All tools rated at 90 psi (620 KPA) air pressure.
Safety Precaution: Read and follow all safety operating instructions.
WARNING: Excessive or improper use may result in carpal tunnel syndrome (”White Finger”) disease.
Face and eye protection must be worn while operating power Tools, per ANSI B186.1
