Riveting l Riveting Squeezers l Alligator Tandem l CP 0214 ENGEL-ENFEL-ENBEL

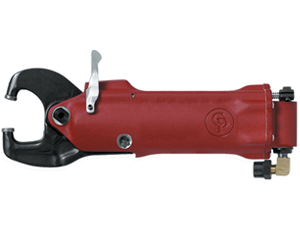

Alligator Tandem l CP 0214 ENGEL-ENFEL-ENBEL

Air powered compression riveters deliver a squeezing action, which drives the rivet by “Flowing” the rivet metal with compressed forces. Squeezing action is obtained by coupling an air cylinder and piston to a wedge or cam, thus multiplying the original force to extreme ratios. High compressive forces are obtained from a relatively compact unit having small diameter cylinders and using very little compressed air.

Capacity
Standard Jaw
Moving Jaw
Net Weight with Jaws
Length
Al
Steel
Reach
Gap
Closed Height
Max Travel
Max Force (90 PSI)
Part of Stroke at Max Force (Final)
in.
in.
in.
in.
in.
in.
Pounds
in.
lbs.
in.
1/8”
3/32”
3”
2 1/8”
7/8”
1 1/4”
3400
0.104”
5 1/2
13 1/2”
5/32”
3/32”
2 1/4”
2 1/8”
7/8”
7/8”
4300
0.094”
5 1/4
12 3/4”
3/16”
5/32”
1 1/2”
1 5/8”
7/8”
5/8”
6000
1/16”
4 3/4
11 15/16”
