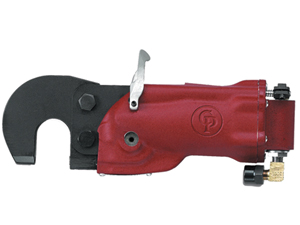

C-Yoke Single Cylinder l CP0214

Air powered compression riveters deliver a squeezing action, which drives the rivet by “Flowing” the rivet metal with compressed forces. Squeezing action is obtained by coupling an air cylinder and piston to a wedge or cam, thus multiplying the original force to extreme ratios. High compressive forces are obtained from a relatively compact unit having small diameter cylinders and using very little compressed air.

Model / Part Number
Capacity
Yokes Available
Set Holder Plunger
Net Weight
Length
Al
Steel
Reach
Gap
Max Force
(90 PSI)
Part of Stroke at Max Force (Final)
in.
in.
in.
in.
lbs.
in.
lbs.
in.
CP0214CELEL
1/8”
3/32”
1 1/2”
1 1/4”
3000
1/20”
4 1/2
10 5/16”
CP0214SETEL
1/8”
3/32”
1 1/2”
1 1/4”
3000
1/20”
4 1/2
10 5/16”
