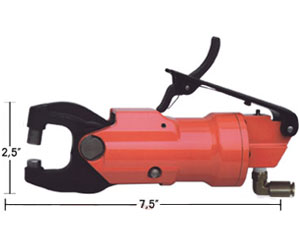

Riveting l Riveting Squeezers l Alligator Single Cylinder l Model 702
Ordering No. (Jaw Assembly) |
Capacity |
Standard Jaw |
Moving Jaw |
Net Weight with Jaws |
Length |
||||||
3/16” Set Hole |
1/4” Set Hole |
Al |
Steel |
Reach |
Gap |
Closed Height |
Max Travel |
Max Force (90 PSI) |
Part of Stroke at Max Force (Final) |
||
in. (mm) |
in. (mm) |
in. (mm) |
in.
(mm) |
in.
(mm) |
in. (mm) |
Lb |
in.
(mm) |
lbs. (kg.) |
in.
(mm) |
||
22342 Power Unit only:22360 |
- |
1/8” (3.2) |
3/32” (2.4) |
1” (25.4) |
1-7/64” (28.1) |
5/6” (21.4) |
3/8” (9.5) |
2000 |
1/32” (0.78) |
2.2 (1) |
7-21/64” (186.1) |
