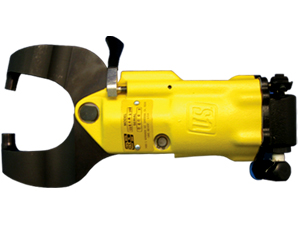

Alligator Single Cylinder l US 114A / US114AA

• Us Industrial
• One-man operation increases productivity
• “Squeeze” action permits easy control, exceptional accuracy and uniformity
• High joint integrity independent of operator skill level
• Speed of squeeze riveter can be controlled by throttle
• Develops full squeezing force with only 90 p.s.i. air pressure
• One piece bearing for long life
• Yellow “Sure Grip” finish for positive handling
• Cast alloy steel lever positioned for user comfort
• Made in the U.S.A.
• CE certified


Model PN
Capacity
Standard Jaw
Moving Jaw
Net Weight with Jaws
Length
Al
Steel
Reach
Gap
Closed Height
Max Travel
Max Force (90 PSI)
Part of Stroke at Max Force (Final)
in
in
in
in
in
in
lbs
in
lbs
in
US114A
1/8
3/32
1 1/2
1 1/2
7/8
5/8
3000
-
3 3/4
9 3/16
US114A-2-1/4
1/8
3/32
2 1/4
2 1/4
7/8
7/8
2200
-
4 1/4
10 1/8
US114A-3
3/32
1/16
3
3
7/8
1 1/4
1800
-
4 1/2
10 3/4
US114A-5-1/2
3/32
N/A
5 1/2
5 1/2
7/8
15/16
1250
-
6 1/2
13 1/4
US114AA
5/32
1/8
1 1/2
1 1/2
7/8
5/8
4300
-
3 3/4
9 3/16
US114AA-2-1/4
1/8
3/32
2 1/4
2 1/4
7/8
7/8
3900
1/16
4 1/4
10 1/8
US114AA-3
3/32
N/A
3
3
7/8
1 1/4
3400
3/32
4 1/2
10 3/4
US114AA-5-1/2
3/32
N/A
5 1/2
5 1/2
7/8
15/16
2200
-
6 1/2
13 1/4
