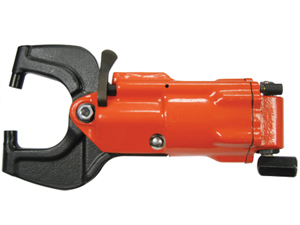

Alligator Single Cylinder l 710A-HF

• Safety throttle lever
• Anodized aluminum housing
• 90o elbow swivel air inlet
• Rivet capacity up to 3/16" aluminum and 5/32" steel
• Smooth controlled throttle movement
• Low cost replacement parts
• Tool steel roller bearings and shafts
• Additional configuration of jaws available
• Operate on 90 PSI air
• Set holders in 3/16" and 1/4" diameter available

Model PN
Ordering No.
(Jaw Assembly)
Capacity
Standard Jaw
Moving Jaw
Net Weight with Jaws
Length
3/16” Set Hole
1/4” Set Hole
Al
Steel
Reach
Gap
Closed Height
Max Travel
Max Force (90 PSI)
Part of Stroke at Max Force (Final)
in.
in.
in.
in.
in.
in.
Pounds
in.
lbs.
in.
710A-HF
8521
7360
7361
3/16
5/32
1 1/2
1 1/2
7/8
5/8
4500
1/32
3 3/4
9 3/16
7362
7363
5/32
1/8
2 1/4
2 1/4
7/8
7/8
3300
3/64
4 1/4
10 1/8
7364
7365
1/8
3/32
3
3
7/8
1 1/4
2700
1/16
4 3/4
10 7/8
