Riveting l Riveting Squeezers l Alligator Single Cylinder l 10158-10159-10160

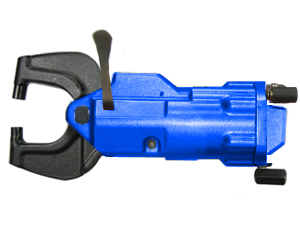

Alligator Single Cylinder l 10158-10159-10160

Special jaws or yokes are available upon request. All Avro riveters are available with high output wedges for high force applications. A
micrometer style adjustable set holder is available on all rivet squeezers to eliminate the use shims.
General:
Air Inlet 1/4” NPT Standard
1/4” BSP (Europe) ADD-E to part number;
eg: 10158E
Use 5/16” (8mm) I.D Hose
All tools rated at 90 psi (620 KPA) air pressure.

Model PN
Capacity
Standard Jaw
Moving Jaw
Net Weight with Jaws
Length
Al
Steel
Reach
Gap
Closed Height
Max Travel
Max Force (90 PSI)
Part of Stroke at Max Force (Final)
in.
in.
in.
in.
in.
in.
Pounds
in.
lbs.
in.
10158
1/8
3/32
1-1/2
7/8
-
5/8
3000
-
4
9-1/4
10159
3/35
3/32
2-1/4
7/8
-
7/8
2400
-
4.5
10
10160
3/32
3/32
3
7/8
-
1-1/4
1800
-
5
10-3/4
