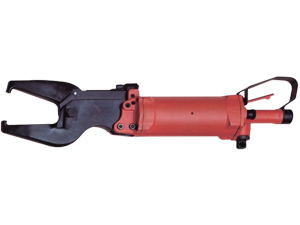

Riveting l Riveting Squeezers l Alligator High Force l CP0351 SERIES
 |
Air powered compression riveters deliver a squeezing action, which drives the rivet by “Flowing” the rivet metal with compressed forces. Squeezing action is obtained by coupling an air cylinder and piston to a wedge or cam, thus multiplying the original force to extreme ratios. High compressive forces are obtained from a relatively compact unit having small diameter cylinders and using very little compressed air. |
|||
Model No. |
Jaw Reach |
Ordering No. (Jaw Assembly) |
Capacity |
Max. Force (90 PSI) |
Part of Stroke at Max. Force |
Net Weight with Jaws |
Overall Length |
||
3/16” Set Hole |
1/4” Set Hole |
Al |
Steel |
||||||
in. |
in. |
lbs |
in. |
lbs. |
in. |
||||
CP0351ASGEL
|
2-7/8”
|
-
|
-
|
5/32” |
1/8” |
5200 |
1/8” |
15-3/4 |
19-1/2 |
CP0351ASKEL
|
5”
|
-
|
-
|
1/8” |
3/32” |
3400 |
3/16” |
19-3/4 |
21-5/8” |
CP0351ASVEL
|
9-1/8”
|
-
|
-
|
1/8” |
3/32” |
3000 |
1/16” |
26-1/4 |
25-3/4” |
CP0351ESKEL
|
5”
|
-
|
-
|
3/16” |
5/32” |
6800 |
3/16” |
22.5 |
25 7/8” |
CP0351ESREL
|
7”
|
-
|
-
|
3/16” |
5/32” |
6000 |
3/16” |
27 |
27 7/8” |
CP0351ESVEL
|
9 1/8”
|
-
|
-
|
3/16” |
5/32” |
6000 |
1/16” |
29 |
30” |
CP0351ESGEL
|
2 7/8”
|
-
|
-
|
1/4” |
3/16” |
10400 |
1/8” |
18.5 |
23 3/4” |
