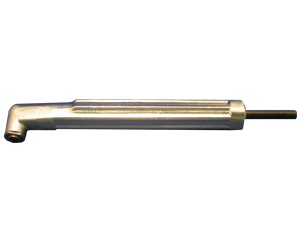

90° Light Duty Angle Drill ZT616

Designed primarily for use in limited spaces. This unit features a greatly reduced 90 degree end section plus all the advantages of other light duty drills.

Drilling Tools

Drill Name & Description
Model
Spindle Thread
Spindle Offset
O
Length Short End
X
Overall Length
L
Body Dia.
D
Max. Drill Capacity
90° Light Duty Features a greatly reduced 90° end section
ZT616D
10-32
13/64"
25/32"
5-5/8"
5/8"
1/8"
