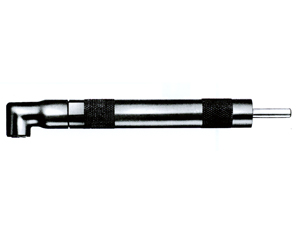

90° Light Duty ZT613

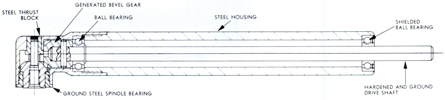

Constructed with an all steel housing to permit the use of larger, stronger gears and increased drill capacity, without sacrificing the overall size as offered in other light duty drills.

Drilling Tools

Drill Name & Description
Model
Spindle Thread
Spindle Offset
O
Length Short End
X
Overall Length
L
Body Dia.
D
Max. Drill Capacity
90° Light Duty Features a greatly reduced 90° end section
ZT613C
1/4-28
5/16"
29/32"
73/16"
3/4"
3/16"
ZT613D
10-32
ZT613F
9/32-40
