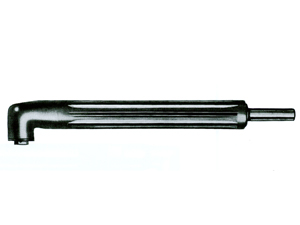

90° Light Duty Angle Drills ZT417

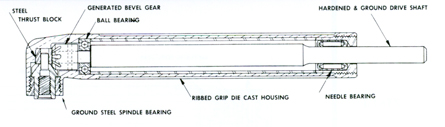

These small, compact drills are designed for extra "Tight" spots. They are similar in construction to the larger models except that, because of mechanical limitations, a ground steel spindle bearing is used instead of a radial thrust ball bearing.


Drill Name & Description
Model
Spindle Thread
Spindle Offset
 O
Length Short End
 X
Overall Length
 L
Body Dia.
 D
Max. Drill Capacity
90° Light Duty Small, compact drill designed for extra tight spots
ZT417-D
10-32
17/64”
27/32”
5-5/8”
5/8”
1/8”
