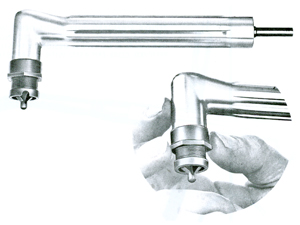

Microstop Angle Countersink Attachment ZT329

Controls Cutting Depth in Hard-to-reach places



Model
Attachment
Fits Angle Drill
Spindle Thread
O
Minimum X
Maximum X
L
D
ZT329A *
ZT329042
ZT219C
1/4-28
15/32
2-3/32
2-1/4
7-3/8
7/8
ZT329B *
ZT329041
ZT329C *
ZT329043
ZT329D *
ZT329044
ZT418D *
ZT418040
ZT417
10-32
5/16
1-1/4
1-7/16
5-5/8
5/8
* Complete tool number. Includes angle head.

Used On Model Number
Cutter Diameter
When ordering these integral pilot cutters, specify dash number and pilot diameter required. Example: ZT264-26-5/32”
Cutter Thread
78°
82°
100°
110°
115°
Number of Flutes
Used On
ZT329A
7/16”
1/4-28
ZT264-24
ZT264-25
ZT264-2
ZT264-27
ZT264-45
3
Stainless
ZT329B
1/2”
ZT264-28
ZT264-29
ZT264-30
ZT264-31
ZT264-46
ZT329C
7/16”
ZT170-24
ZT170-25
ZT170-26
ZT170-27
ZT170-45
ZT329D
1/2”
ZT170-28
ZT170-29
ZT170-30
ZT170-31
ZT170-46
ZT418D
9/32”
ZT297-10
ZT297-11
ZT197-12
ZT197-13
ZT197-14
Pilot Hole
ZT418D
9/32”
5/64” +
10-32
ZT290-10
ZT290-11
ZT290-12
ZT290-13
ZT290-14
2
Aluminum
ZT291-10
ZT291-11
ZT292-12
ZT290-13
ZT291-14
3
Stainless
+ Use pilot number ZT292 (specify head diameter) used on ZT290, ZT 291 cutters. Example: ZT290-12-5/32”
