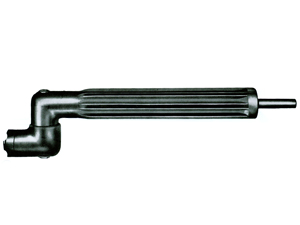

360° standard duty Angle Drill ZT246

A truly "all angle" 360° swivel head type of tool designed for all standard duty drilling operations. Incorporates the same fine workmanship and design features as other tools.


Drill Name & Description
Model
Spindle Thread
Spindle Offset
O
Length Short End
X
Overall Length
L
Body Dia.
D
Offset Length
Y
Max. Drill Capacity
360° Standard Duty All angle swivel head for all standard drilling operations
ZT246-B
5/16-24
3/8"
2"
8-9/16"
7/8"
2"
3/8"
ZT246-C
1/4-28
ZT246-D
10-32
