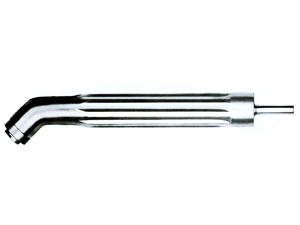

45° Standard Duty Angle Drill ZT220

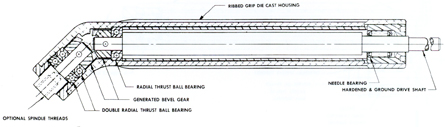

This 45° angle head is the accepted "standard duty" size. its conservative design and precision workmanship assure long and satisfactory service.


Drill Name & Description
Model
Spindle Thread
Spindle Offset
O
Length Short End
X
Overall Length
L
Body Dia.
D
Max. Drill Capacity
45° Standard Duty Conservative design and precision workmanship
ZT220-B
5/16-24
13/32”
1-3/8”
7-7/8”
7/8”
3/8”
ZT220-C
1/4-28
ZT220-D
10-32
