Drilling Tools l Drilling Accessories l Angle Drill Attachment l 90° standar Duty Angle Drill ZT219

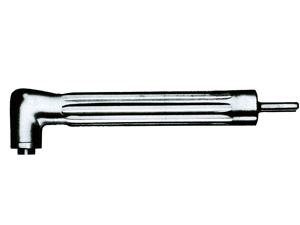

90° standar Duty Angle Drill ZT219

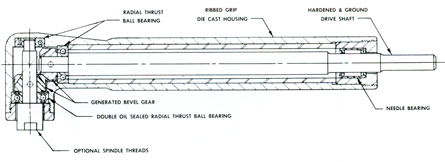

These tool are consider as the "standard duty" size by most users. They incorporate the finest of mechanical design and construction that it is possible to pack into their physical dimensions.


Drill Name & Description
Model
Spindle Thread
Spindle Offset
O
Length Short End
X
Overall Length
L
Body Dia.
D
Max. Drill Capacity
90° Standard Duty They incorporate the finest of mechanical design for their size
ZT219-B
5/16-24
13/32”
1-11/16”
7-3/8”
7/8"
3/8”
ZT219-C
1/4-28
ZT219-D
10-32
